Semi-Auto Low Profile Stretch Wrap Machine w/ PRESTRETCH - EXT HEIGHT Handle It 850PS

Call for Price

Customized in Up to 5 Weeks

SKU
MSW-SWM-SA-850PSXHT

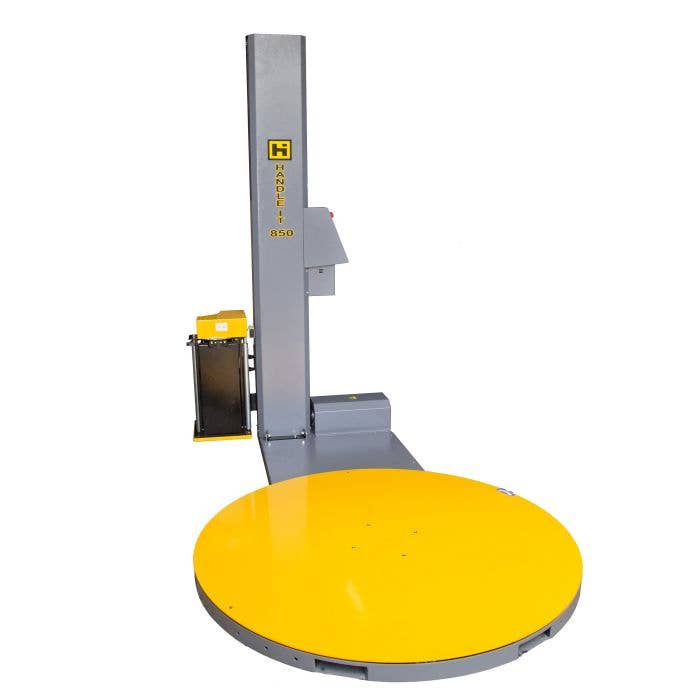

The Semi-Auto Low Profile Stretch Wrap Machine w/ PRESTRETCH AND EXT HEIGHT MAST Model 850PS by Handle It is ideal for those who are looking for an efficient machine capable of handling high volumes of pallets per day.

Semi-Auto Low Profile Stretch Wrap Machine w/ PRESTRETCH - EXT HEIGHT Handle It 850PS

The Handle-It® Model 850PS offers top-of-the-line functions and features at a great price. It is ideal for those who are looking for an efficient machine capable of handling high volumes of pallets per day. Standard features on the 850PS include 250% powered pre-stretch, 98" extended mast max wrap height, user-friendly control panel, electronic film tension, and many other elements cleverly designed to make this unit a must-have in any facility looking to improve and streamline their packaging operations.

250% Powered Film pre-stretch carriage for improved film economy

Easy to use controls with 18 custom wrap cycles

Rack and pinion carriage drive for added reliability

Performance

  • 100 maximum average loads per day
  • 93" maximum load size diagonal
  • 98" extended mast maximum load wrap height
  • 4400lb maximum load weight capacity
  • 250% power pre-stretch film carriage for improved efficiency

Specifications

  • Turntable speed 3-13 RPM
  • 59" Turntable size
  • 3/4 HP TEFC Turntable Drive Motor
  • 110v standard plug
  • Machine size 93"L x 59" W x 88" H

Features

  • Electronic printed circuit board for the management of the cycle
  • Frequency controller for turntable speed adjustment (from 3 to 13 RpM)
  • Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
  • Electronically controlled power pre-stretch film carriage- load sensor dynamically controls the application of film for an ultra consistant film stretch.
  • Photocell for pallet height detection
  • Safety stop at the base of the carriage
  • Stop at home position
  • Power board IP54
  • 2 access keys (including lock mode)
  • Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, film tension.
  • Many parameters available at upper password level
  • Reinforcing operation
  • 3 working cycles: ascent/descent; topsheet; only ascent
  • 9 wrap programs can be saved by the customer
  • 9 additional recordable playback cycles can be saved

Benefits

  • ​Rack and pinion carriage drive system adds to reliability and reduces down time.
  • Integrated control board makes repair and diagnosis easier and reduces machine down time
  • Seimens VFD for the power pre-stretch carriage
  • Heavy Duty Carriage Rollers & Self Lubricating turntable bearings
  • Electronically controlled power pre-stretch carriage greatly increases film efficiency
  • Easily moved with forklifts and plugs into standard 110v wall outlets.
Technical Specifications
Wrap Height 98"
Turntable Diameter 59"
Max Pallet Size 48" x 80" (93" Diagonal)
Turntable Height 3"
Weight Capacity 4,400 lbs
Pre-Stretch 250% Powered
Power Supply 110V, 10Amp
Total Machine Footprint 93" Long x 60" Wide
Machine Weight 600 lbs
Turntable Speed 13 RPM
