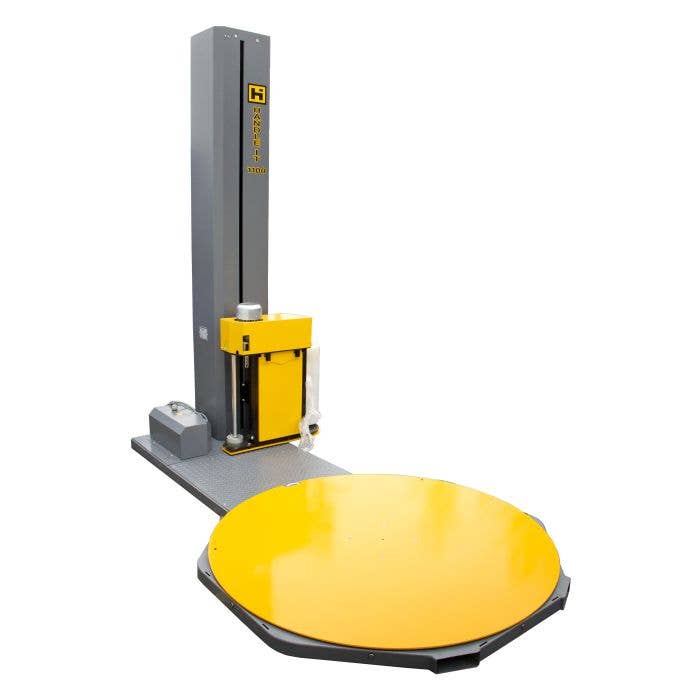

Handle It Semi-Auto Low Profile Stretch Wrap Machine Model 1100

Call for Price

Customized in Up to 8 Weeks

SKU
MSW-SWM-SA-1100

The Handle It Semi-Auto Low Profile Stretch Wrap Machine AUTO CUT OFF Model 1100 is ideal for those who are looking for an efficient machine capable of handling high volumes of pallets per day.

Handle It Semi-Auto Low Profile Stretch Wrap Machine Model 1100

The Handle-It® Model 1100 offers top-of-the-line functions and features at a great price. It is ideal for those who are looking for an efficient machine capable of handling high volumes of pallets per day.

Standard features on the 1100 include 250% powered pre-stretch, user-friendly PLC control panel, braked turntable, and many other elements cleverly designed to make this unit a must-have in any facility looking to improve and streamline their packaging operations.

250% film pre-stretch and full feature wrap cycle parameters

Max average loads wrapped per day 300 cycles.

Performance

  • 300 maximum average loads per day
  • 93" maximum load size diagonal
  • 86" wrap height with 4'' of overap total max height of 90"  optional -118" extended height available.
  • 4400lb maximum load weight capacity
  • 250% power pre-stretch film carriage for improved efficiency

Specifications

  • Turntable speed 3-12 RPM
  • 59" Turntable size
  • 3/4 HP TEFC Turntable Drive Motor
  • 1/2 HP TEFC Pre-Stretch Motor
  • 110v standard plug
  • Machine size 104"L x 59" W x 97" H

Features

  • User-friendly integrated PLC control board
  • Frequency controller for carriage and/or turntable speed adjustment
  • Photocell for pallet height detection
  • Electronically controlled power pre-stretch film carriage- load sensor dynamically controls the application of film for an ultra consistant film stretch.
  • Stop at home position
  • Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
  • Quick selection of 6 main parameters or saved programs
  • USB port to upload software and download settings, reports, and statistics
  • 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack
  • Storage of 32 end user programs
  • On-board diagnostics
  • Up to 250% film pre-stretch with electronic power pre-stretch motor
  • 3 year warranty

Benefits

  • Rack and pinion carriage drive system increases reliability and decreases down time.
  • Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime
  • Belt driven power pre-stretch carriage for added reliability
  • Heavy Duty carriage rollers and self lubricating turntable bearings
  • Automatic film cut is standard reducing labor time to remove pallets increasing material flow.
  • Password protection and one of the widest array of wrap cycle parameters available.



Technical Specifications
Max Wrap Height 59"
Turntable Diameter 59"
Max Pallet Size 48" x 80" (93" Diagonal)
Turntable Height 3"
Weight Capacity 4,400 lbs
Pre-Stretch 250% Powered
Power Supply 110V, 10Amp
Total Machine Footprint 105" Long x 60" Wide
Machine Weight 900 lbs
Turntable Speed 12 RPM
