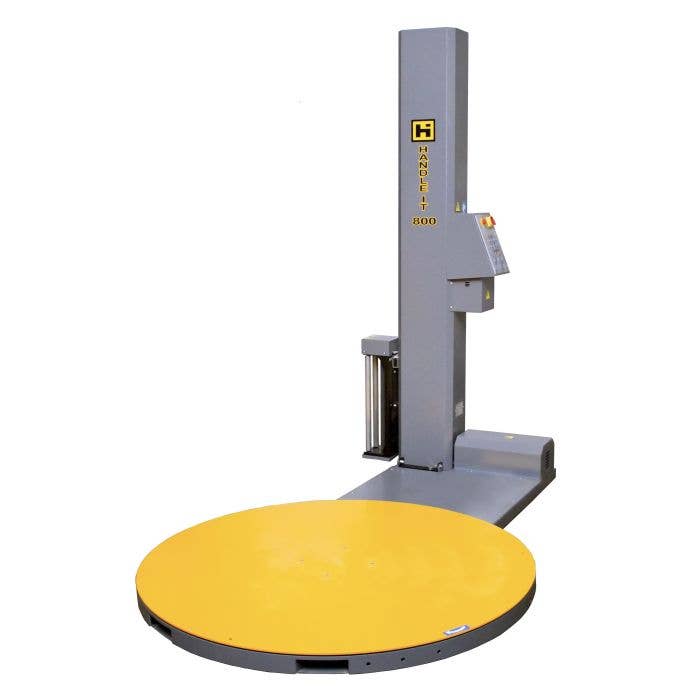

Semi-Auto Low Profile Stretch Wrap Machine XT HEIGHT MAST Model 800 by Handle It

$7,900.00
Availability: In stock
SKU
MSW-SWM-SA-0800XHT

The Semi-Auto Low Profile Stretch Wrap Machine XT HEIGHT MAST Model 800 by Handle It is ideal for medium level operations.

Semi-Auto Low Profile Stretch Wrap Machine XT HEIGHT MAST Model 800 by Handle It

The Handle-It® Model 800 offers all of the top-of-the-line functions and features as the 850PS but with an electro-mechanical brake tensioner for film stretch. This model is ideal for medium level operations. Standard features on the 800 include 4400lb capacity, 98” extended mast max wrap height, user-friendly control panel, electronic film tension, and many other elements cleverly designed to make this unit a must-have in any facility looking to improve and streamline their packaging operations.

3 year warranty

Electromagnetic Film Tension up to 150% film stretch

4400lb capacity



Performance

  • 100 maximum average loads per day
  • 93" maximum load size diagonal
  • 98" extended mast maximum load wrap height
  • 4400lb maximum load weight capacity

Specifications

  • Turntable speed 3-13 RPM
  • 59" Turntable size
  • 3/4 HP TEFC Turntable Drive Motor
  • 110v standard plug
  • Machine size 93"L x 59" W x 88" H

Features

  • Electronic printed circuit board for the management of the cycle
  • Frequency controller for turntable speed adjustment (from 3 to 13 RpM)
  • Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
  • Turntable size 59”
  • Electromagnetic brake for film stretching
  • Photocell for pallet height detection
  • Safety stop at the base of the carriage
  • Stop at home position
  • Power board IP54
  • 2 access keys (including lock mode)
  • Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, film tension.
  • Many parameters available at upper password level
  • Reinforcing operation
  • 3 working cycles: ascent/descent; topsheet; only ascent
  • 9 wrap programs can be saved by the customer
  • 9 additional recordable playback cycles can be saved

BENEFITS

  • Rack and Pinion carriage drive require little to no maintenance vs. typically chain drives
  • Integrated control board makes repair and diagnosis easier and reduces machine down time
  • Electric Variable Film Tension to perfectly dial in your film force.
  • Heavy Duty Carriage Rollers & Self Lubricating turntable bearings
  • Easily moved with forklifts and plugs into standard 110v wall outlets.
  • 3 year parts warranty, parts stocked in Milwaukee
  • Simple film threading and intuitive controls
  • Pallet wrapped counter so you can track load throughput



Technical Specifications
Wrap Height 98"
Turntable Diameter 59"
Max Pallet Size 48" x 80" (93" Diagonal)
Turntable Height 3"
Weight Capacity 4,400 lbs
Electronic Film Tension Variable
Power Supply 110V, 10Amp
Total Machine Footprint 93" Long x 60" Wide
Machine Weight 600 lbs
Turntable Speed 13 RPM
