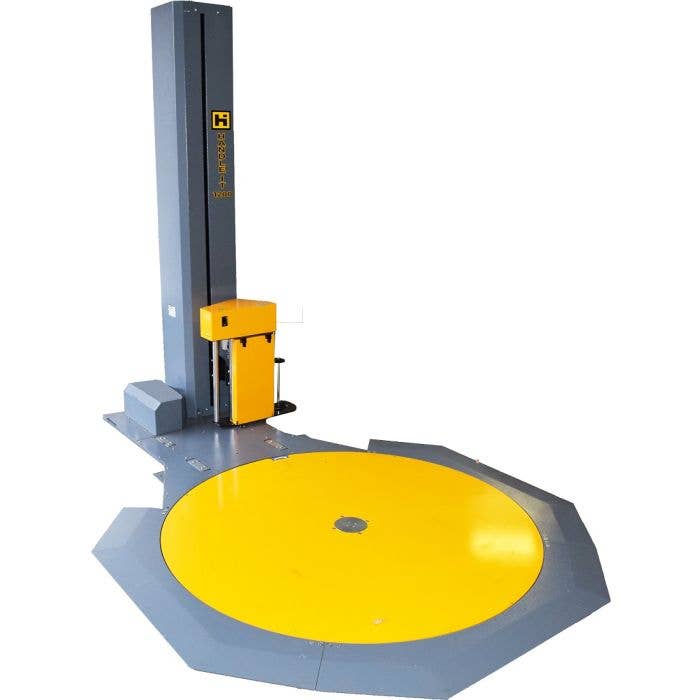

Semi-Auto Low Profile Stretch Wrap Machine ULTRA LOW PROFILE 1200UL by Handle It

The 1200UL has a patented ultra-low frame (.75") allowing you to load and unload without a long ramp. It comes standard with a power pre-stretch carriage and PLC controls. The frame makes loading safer and faster. You also save floor space and money without the need for standard 5' or 7' long ramps.

3 sided 8'' skirt ramp included

Easiest machine on the market to load and unload with pallet jacks and electric walk behinds

Patented Ultra Low Frame doesn't require long space eating ramps or expensive pit mounting-Save vital space!

Max average loads wrapped per day 200 cycles.

The best solution on the market for loading with electric rider pallet jacks

*No space eating ramps or expensive pit mounting

 It's the easiest machine to load and unload in the market!

Performance

• 200 maximum average loads per day
• 66" maximum load size diagonal
• 86" wrap height with 4'' of overap total max height of 90"  optional -118" extended height available.
• 2600lb maximum load weight capacity
• 250% power pre-stretch film carriage for improved efficiency

Specifications

• Turntable speed 3-12 RPM
• 66" Turntable size
• 3/4 HP TEFC Turntable Drive Motor
• 1/2 HP TEFC Pre-Stretch Motor
• 110v standard plug
• Machine size 119"L x 82" W x 95" H (Includes 3 sided skirt ramp)


Features

• Patented Ultra low profile frame, less than 3/4'' with an 8'' skirt ramp so pallet jack loading is a breeze!
• User-friendly PLC control board
• Frequency controller for carriage and/or turntable speed adjustment
• Photocell for pallet height detection
• Stop at home position
• Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
• Quick selection of 6 main parameters or saved programs
• USB port to upload software and download settings, reports, and statistics
• Storage of 32 end user programs
• On-board diagnostics
• 3 year warranty

Benefits

• Rack and pinion carriage drive system increases reliability and decreases down time.
• Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime
• Belt driven power pre-stretch carriage for added reliability
• Brushless AC motors
• Password protection and one of the widest array of wrap cycle parameters available.
