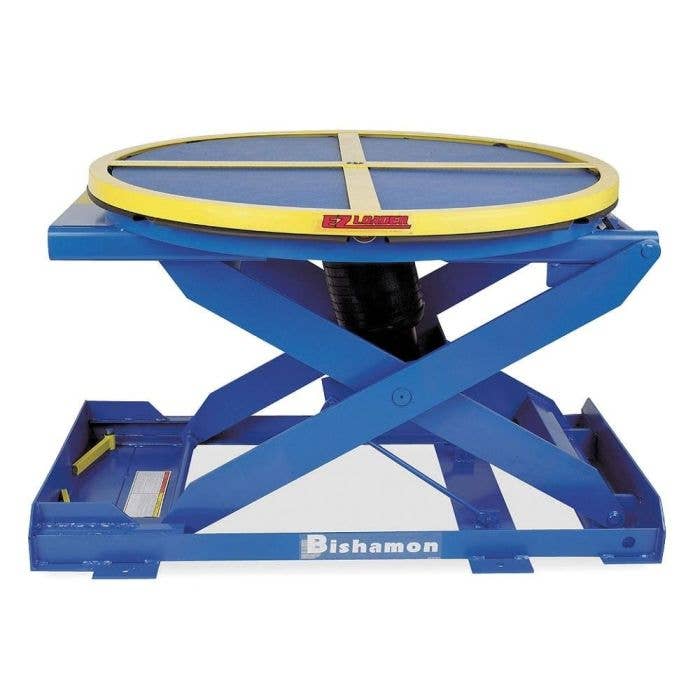

Pneumatic EZ Loader Pallet Positioner by Bishamon

Pneumatic EZ Loader® Pallet Positioner by Bishamon®

**Lead Time 2-4 Weeks**

Bishamon® automatic work positioners are the modern way to manually load and unload pallets. They improve efficiency and reduce injury by bringing the level and location of the top of load closer to the person doing the work. Pallet loading and unloading time can be reduced by 40%, thereby substantially increasing productivity.

The new Bishamon® EZ Loader will now handle a wide range of weight capacities from 250 lbs. up to 4,000 lbs. And to make it even better, we added the EZ Adjust knob - a three position knob that allows adjustment of the collapsed capacity without changing the air pressure!

Standard Features

• Self leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity
• Integral rotator ring helps eliminate reaching and stretching
• Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform
• A three position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure
• Secured ball bearing center pivot of the 43” diameter rotator ring provides smooth, even rotation
• Pressure relief valve prevents excess pressure build-up n Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish
• Rollers are entrapped in the base frame and platform for added stability
• A safety finger guard eliminates pinch points with the rotator ring spoke and bearings
• Integral maintenance blocks n EZ Loaders arrive at your facility fully assembled - just add air!
• Easily transported with a fork truck or via optional portability packages
• The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).

Advantages

• No mechanical springs, uses captive air to eliminate the need for a constant air supply
• Self-raising and lowering of the pallet as load weight changes
• No springs to change or estimating of weight
• Simple adjustments of weight capacities to work requirements
• Self-dampening eliminates the need for shock absorbers
