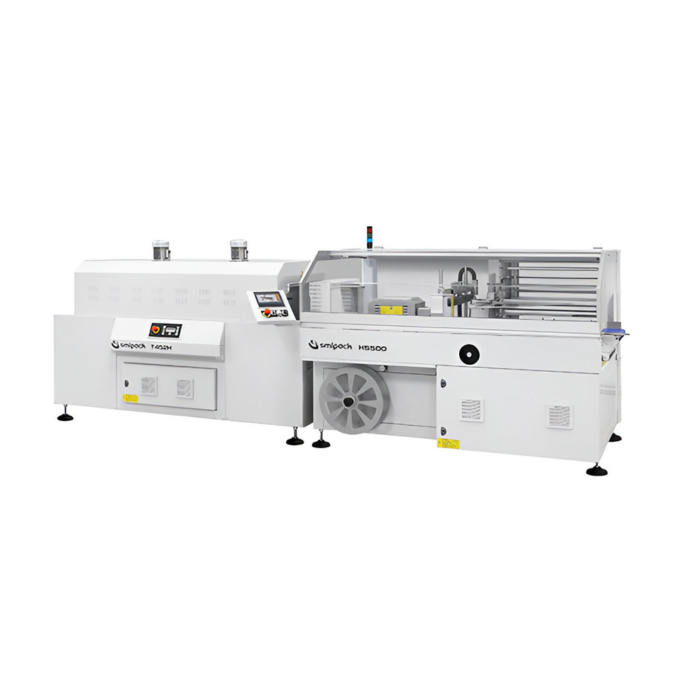

Continuous Automatic Side Sealers HS500
Customized in Up to 8 Weeks
HS Series automatic side sealers are designed according to the most advanced concepts of Industry 4.0. They handle Polyolefin and Polyethylene, Polypropylene center folded or flat film with film folder PX. Outputs of up to 7200 packs/hour. Shrink tunnel sold separately.
Serving these industries:
- Beverage industry
- Preserved foods
- Cosmetics and Pharmaceutical
- Household products, and more!
For current lead times, freight rates, and crating fees, call us at 800-847-5290 or submit an inquiry form HERE
The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel.
The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.
MARKET SECTORS:
Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.
| Power Supply | 220 - 240 / 380 - 415 V |
| 3PH + PE / 3PH + N + PE | |
| 50/60 Hz | |
| Installed Power | 2500 W |
| Sealing Bar | 500 mm |
| Maximum Pack Height | 200 mm |
| Speed of Conveyors | 11 - 45 m/min |
| Speed Up To | 6000 pph** |
| Maximum Size of Film Reel | 600 - ø 350 mm |
| Machine Size | 2170 X 1875 mm |
| h 1505 - 1665 mm | |
| Machine Net Weight | 730 Kg |
| Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 80 my with option cross bar for Polyethylene) | up to 30 µ |
(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
| SKU | MSW-410-HS500-BP |
|---|---|
| Item Returns | This item can be returned |
