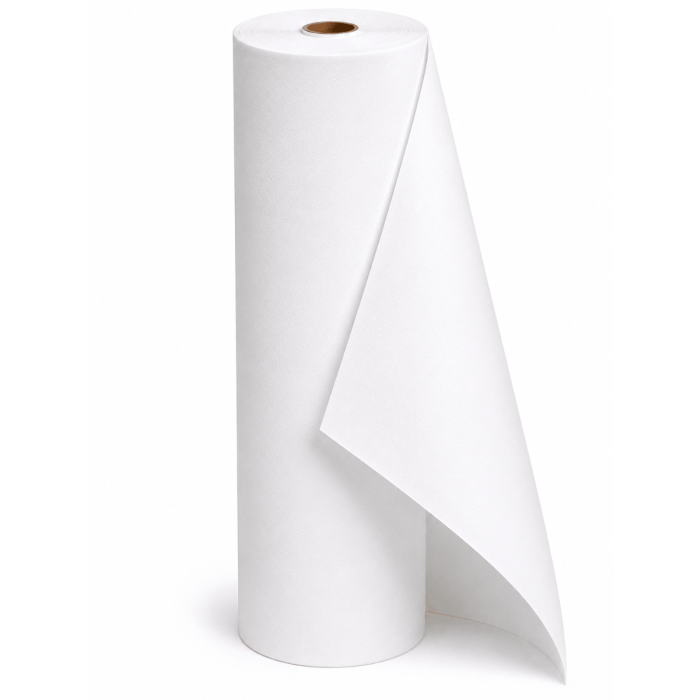

80" x 150 Yd 7 mil White Triple-Layer Shrink Shield® Fabric
Shrink Shield® by Mr. Shrinkwrap is the ultimate **high-performance shrink wrap solution** engineered to protect boats, modular buildings, industrial equipment, and more from harsh weather conditions, road debris, and storage damage. Mr Protect your assets with Shrink Shield® — trusted by professionals for heavy-duty, all-weather protection.
80" x 150 Yd 7 Mil | Shrink Shield® Heat-Activated Shrink Fabric by Mr. Shrinkwrap
Shrink Shield® – by the Roll or Pallet
Shrink Shield® is a 7 mil white triple-layer shrink wrap fabric for fabricating custom covers. It has three layers: a shrink wrap exterior, an adhesive layer, and a nonwoven padding and wicking layer. It is a textile, not a wrap. You sew it into a cover built to the object's specifications, then apply heat to draw it taut. The padding and wicking layer sits against the surface.
Designing a Cover with Shrink Wrap Fabric
- Sew to specification. Design each cover to the object and the application.
- Scale the cover 3–7% larger than the object. Use the smallest scale that still lets you install it without damaging the cover. Larger or more complex objects may need the upper end of the range.
- Shrink only as much as you need. Shrink wrap fabric can shrink up to 12%. Shrink just enough to get a taut surface. That's why we recommend minimal scaling.
Securing the Bottom Edge
As it shrinks, the cover tends to pull up and away from the open side, usually the bottom, which creates a cresting effect. A good attachment design keeps this to a minimum:
- Hem in a perimeter strap rated for the cover's size. It can be a rope or strap pulled and fastened by hand, a plastic strap with a fastener, or, for heavy-duty covers, a ratchet of the right size.
- Add straps on the underside of the object, spaced no more than 8' apart.
Together, the perimeter strap and underside straps give a fairly uniform bottom edge.
Choosing a Shrink Wrap Fabric Roll
Pick the width that fits your largest panel and the length that fits your production run. The 40", 60" and 80" widths each come in two lengths, 450' and 900'. The 123" width comes in 1,500'. The range lets a designer working at any scale size the roll to the cover design, from one-off covers to production runs.
- 40", 60" and 80" wide × 450' or 900'
- 123" wide × 1,500'
Full Pallets
- 16 rolls: 40", 60" or 80" × 450'
- 9 rolls: 80" × 900'
- 3 rolls: 123" × 1,500'
Add a 2nd or 3rd roll of shrink wrap fabric and it ships on the same pallet. Stocked and shipped from Prospect Park, PA.
Fabricating covers for boats, building modules or equipment, or buying shrink wrap fabric for resale? Call 800-847-5290 or use Request a Quote for volume and distributor pricing.
| SKU | MSW-SS-80-150YD |
|---|---|
| Weight | 250.000000 |
| Brand | Shrink Shield |
| Color | White |
| Film Size | 80" x 450' |
| Ships From | Philadelphia PA |
| Item Returns | This item can be returned |
